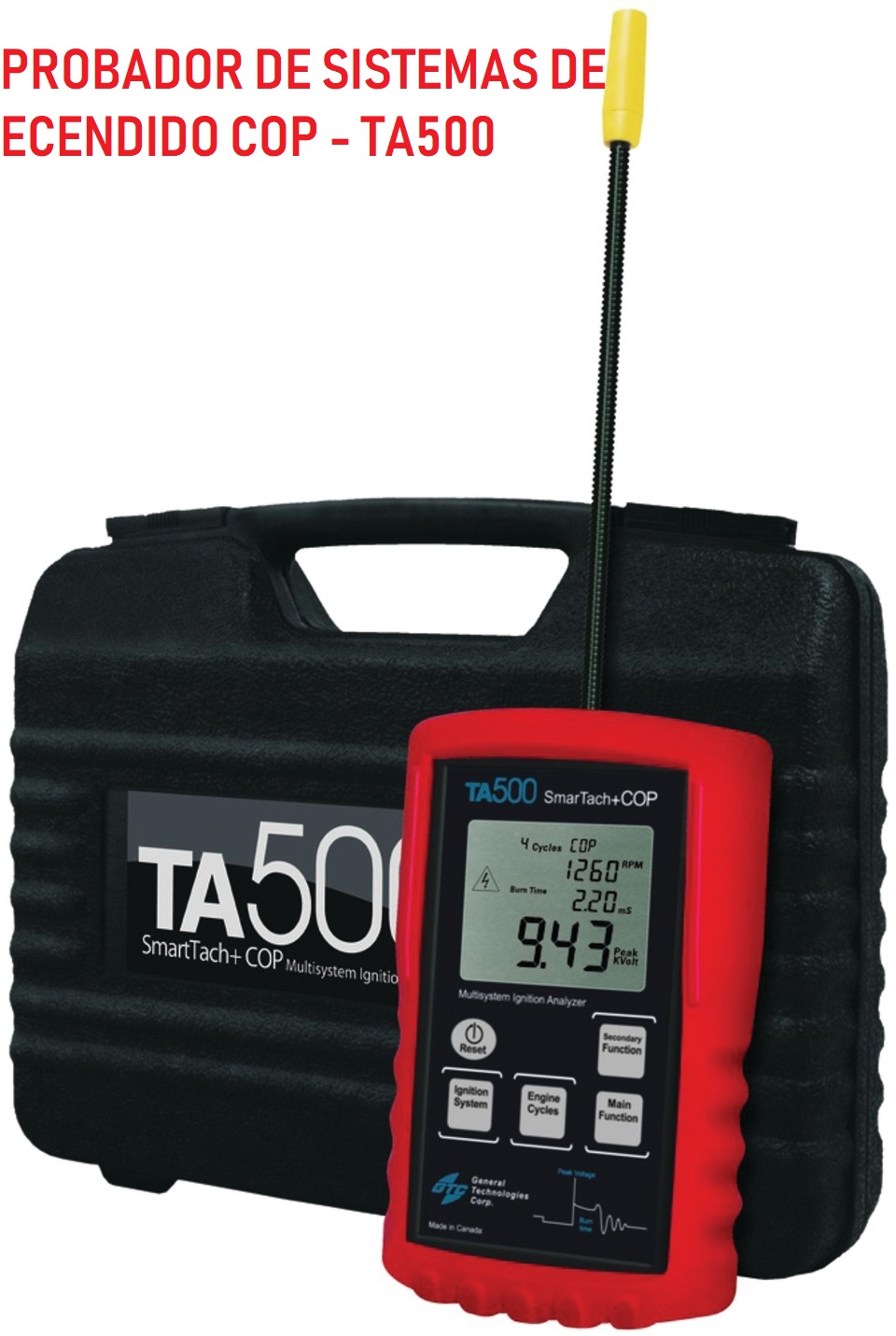

Probador Sistema de Encendido COP TA500

Descripción del producto

La tecnología única y patentada del TA500 permite al usuario realizar diagnósticos rápidos y fiables de no arranques, fallos de encendido, bujías ensuciadas o dañadas y/o cables de bujía, comparando la lectura digital de la tensión de la bujía y el tiempo de combustión de la chispa entre los cilindros de los motores mediante las tecnologías de bobina en bujía, bobina cerca de bujía, distribuidor/bobina de encendido convencional, DIS (sin distribuidor) o tecnologías de chispa de desecho y magneto.

  Fácil de usar, el TA500 no requiere adaptadores especiales, cables o un visor y está equipado con una gran pantalla digital que muestra la tensión de la bujía, el tiempo de encendido, las revoluciones por minuto, así como las lecturas de Mín/Máximo en tiempo real.

Features

Multisystem ignition analyzer

• Measures spark plug voltage from 0 to 50000 Volt
• Measures spark burn time from 0 to 10 ms
• Special antenna sensor allows quick testing of Coil on Plug and Coil near Plug modules, and easy hook-up to spark plug and ignition coil wires
• No ground wire connections required, for fast troubleshooting
• Multiple diagnostic applications are described in comprehensive User's Handbook (Included)

Tachometer function

• For 1 to 12 cylinders and 2, 4 cycles with special DIS (Distributor-less or waste spark) mode.
• Measures from 200 to 20000 RPM on a 4-1/2 digits LCD display
• Advanced microcontroller technology yields 0.5 % accuracy
• Works on Coil on plug, Coil near Plug, DIS (Distributorless or waste spark), Conventional, Magneto and other spark ignition system.

Simple and easy to use

• Ignition Analyzer: Place the antenna's capacitive sensor on top of the Coil on Plug module, or over a spark plug or ignition coil wire. Spark peak voltage and spark burn time are displayed. Tachometer: Set the number of cycles and type of ignition system, and then either place the capacitive sensor on a coil on plug module or spark plug wire, and RPM is displayed.
• Selectable display functions: The display can be set to show all three (RPM, spark burn time and spark plug voltage)measurements simultaneously, or one of the selected measurements with real time maximum and minimum readings.
• Spark capture mode: Maximum and minimum captures the spark peak voltage and spark burn time for testing of ignition systems for no start conditions diagnosis.

Technical Specifications

• Display: Large 4-1/2 Digits LCD + 2 x 3-1/2 + 0 Digits secondary displays (for Maximum, Minimum and other functions)
• Tachometer Range: 200 to 19999 RPM
• Cycles: 2 and 4 Cycles, and DIS
• Tachometer accuracy: ± 0.5% + 1 LSB
• Response time: 0.3 Seconds
• Ignition peak voltage range: 0 to 49.9 KVolt
• Probe: 12" (30 cm) flexible probe with capacitive pick-up
• Secondary ignition pick up: Capacitive sensor
• Spark Ignition System: Coil on Plug, Coil near Plug, Distributor, Magneto and D.I.S.(Distributor-less or waste spark ignition system)
• Power Source: One standard 9 Volt alkaline battery type NEDA 1604 IEC 6F 22
• Battery life: Approx. 20 hours of operation
• Power Saving: Auto power off after approximately 3 min. of inactivity
• Physical dimensions : 6.1" (H) x 4" (W)x 1.5" (D) (155 x 102 X 38 mm) - including holster but excluding antenna
• Weight: Approximately 12.4 Oz ( 355 g) Including battery

Electrical Specifications

• Maximum spark plug wire voltage (Through capacitive pickup only): 49.9 KVolt

For use in

• Automobiles
• Trucks
• Boats
• High performance racing cars
• Motorcycles
• Skidoos
• Snow mobiles
• Lawnmowers
• Chainsaw
• Power generators
• Any engine equipped with spark plug ignition systems

Includes

• TA500
• Protective rubber holster
• Hard padded case for carrying and storage
• 9 Volt alkaline battery
• User's Manual
