Tester Buscador Circuitos Abiertos y Fugas FF310

Descripción del producto

El FF310 - FaultFinder™ es una herramienta especialmente diseñada para rastrear y rastrear cortocircuitos y circuitos abiertos, cables rotos y fugas de corriente en cualquier circuito eléctrico con voltajes de 6 a 42 voltios DC, y es utilizado por técnicos de todo el mundo en una amplia gama de equipos tales como automóviles, remolques de camiones, tractores, equipos agrícolas, embarcaciones, montacargas, motocicletas, vehículos todo terreno y recreativos, etc.

  El amplio rango de voltaje de trabajo del FF310 de 42V ready™, la detección automática de cortocircuito/abierto, los niveles de sensibilidad ajustables y la sonda de antena flexible permiten al técnico solucionar un conjunto completo de problemas eléctricos comunes sin tener que desatar los arneses de cables o quitar los paneles de la carrocería.

Traducción realizada con el traductor www.DeepL.com/Translator

Features

• 42 V Ready: for use in the new generation of vehicles with mixed or single 42 Volt systems
• Operates on DC voltages from 6 to 42 volts
• Internally protected against power surges and overloads
• 8" flexible probe allows reaching wires in congested places
• Transmitter and Receiver LEDs show open or short circuit conditions
• Variable audio/visual signal provides fast and intuitive feedback on the circuit/wire proximity
• Adjustable sensitivity for all tracing situations
• No wire piercing required, non-contact technology
• Tracing of wires is made possible even inside bundles, conduits, behind panels, under carpets, upholstery, etc.
• Transmitter has auto polarity and leads with 5 amps alligator clips.

Easy & flexible to use

• It only requires connecting the transmitter in series with the circuit or wire under test, (i.e.: in place of a blown fuse, across a connector, in series with an open wire, a light bulb socket, etc.), and scanning the circuit/wire with the tracer's flexible probe to find the trouble spot.
• This professional tool will work on all kinds of circuits with voltages between 6 and 42 Volt DC, such as those found in automobiles, trucks, trailers, tractors, boats, RVs, etc… With its wide working voltage range, automatic open/short detection, flexible probe and adjustable sensitivity, the FF310 Faultfinder enables you, to troubleshoot a complete array of common problems, in a wide variety of vehicles.
• Now with the FF310 you can locate short circuits, broken wires, current leaks and perform wire tracing quickly and easily spending only a fraction of the time and effort required when using conventional methods. In most cases, you will even be able to locate the problem area without having to untie harnesses, open conduits or remove panels.

Technical Specifications

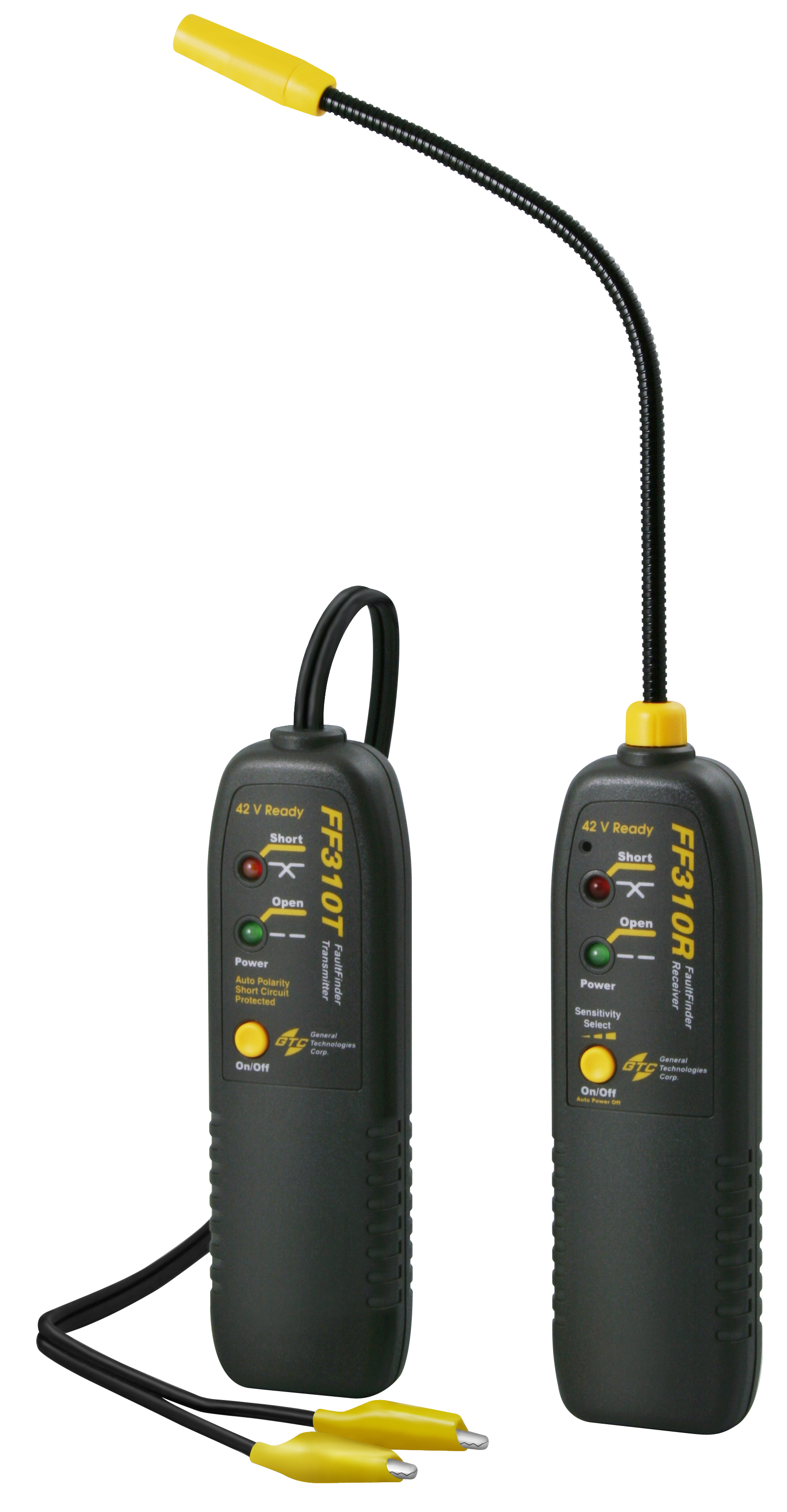

FF310T (Transmitter)

• Indicators: Green LED for power On and Open circuits. Red LED for short circuits
• Power source: 9-volt alkaline battery. Duracell type MN1604 (included)
• Battery life: approx. 25 hrs
• Connector: Two 5 A alligator clamps with auto polarity and 18" long cable
• Physical dimensions: 6" (H) x 1.75" (W) x 0.875" (D) - (152.5 x 44.5 x 23 mm) - Excluding probes
• Weight: Approximately 5.2 Oz ( 145 g) Including battery

FF310R (Receiver)

• Sensitivity: Three user selectable sensitivity levels (low, medium and high)
• Receiver probe: Flexible 8" gooseneck insulated steel probe
• Indicators: Green LED indicator for power on and open circuits. Red LED indicator for short circuits
• Variable flashing and modulated audible signal
• Power source: Standard 9-volt alkaline battery. Duracell type MN1604 (included)
• Battery Life: approx. 25 hrs. Auto Power Off
• Physical dimensions: 6.125" (H) x 1.75" (W) x 0.875" (D) - (155 x 44.5 x 23 mm) - Excluding probe
• Weight: Approximately 5.2 Oz ( 145 g) Including battery

Electrical Specifications

• Input Voltage range: 6 to 42 Volt DC.
• Input DC Current: Unlimited (internally limited)
• Voltage output: 5 Volt DC maximum
• Current Output: 100 mA DC RMS maximum

Applications

• Short circuit tracing
• Open circuit tracing
• Wire identification
• Wire/Circuit tracing
• Ground connections checks

For use in

• Automobiles
• Trucks
• Trailers
• Boats
• RVs
• Any 6 to 42 Volt DC powered circuits.

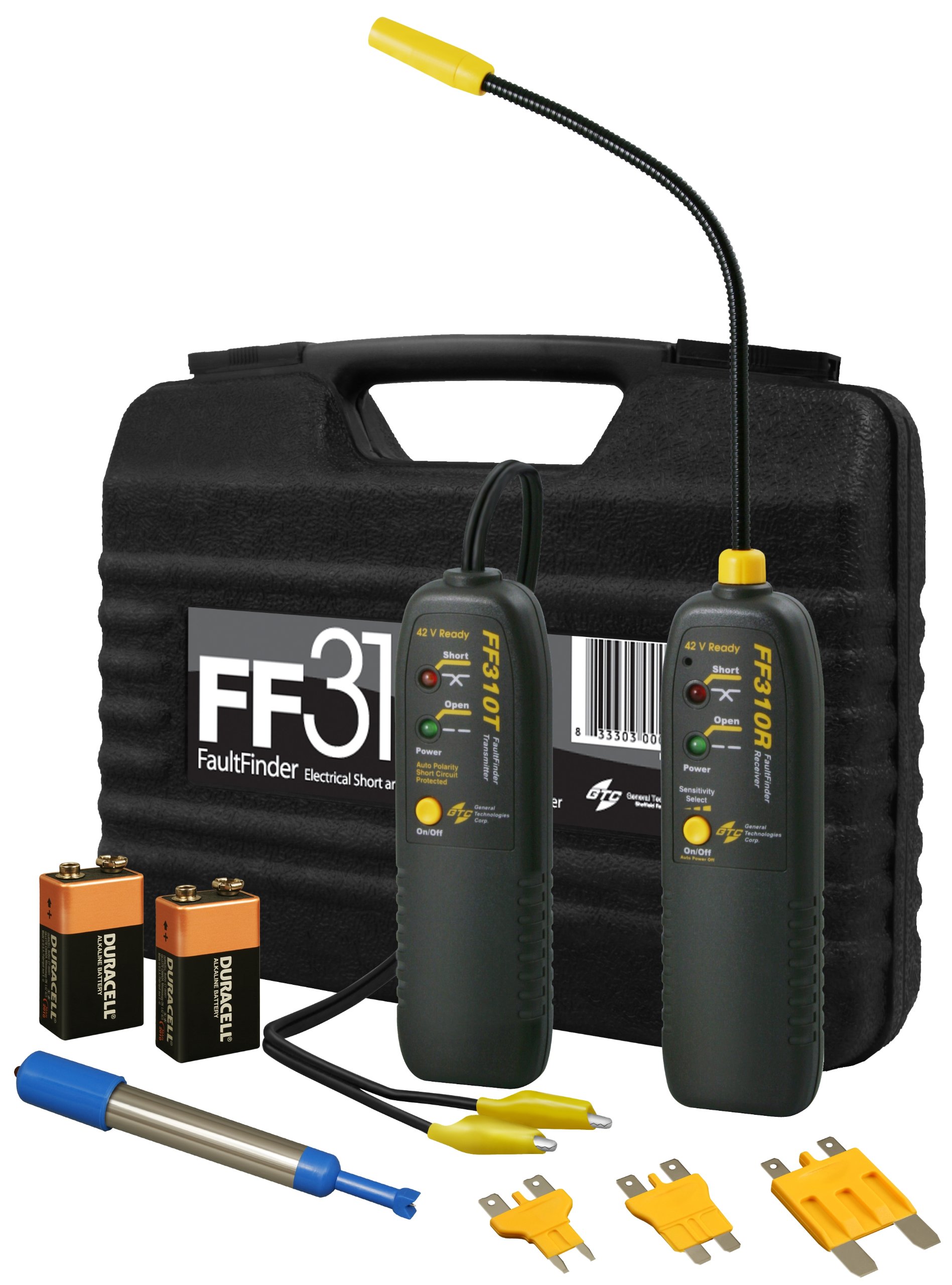

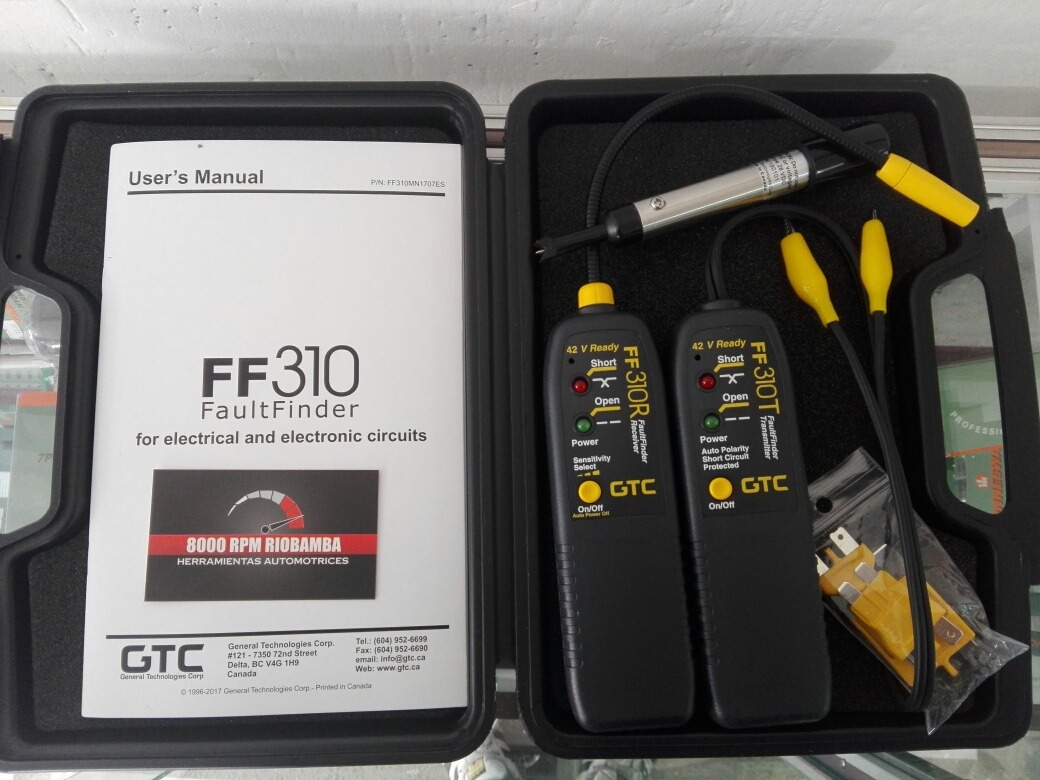

Includes

• FF310T (transmitter)
• FF310R (receiver)
• CT6100 Fuse block adapters (three sizes: Mini, ATO and Maxi)
• CT8002 Computer safe cordless circuit tester
• Hard padded case for carrying and storage
• User's Manual
