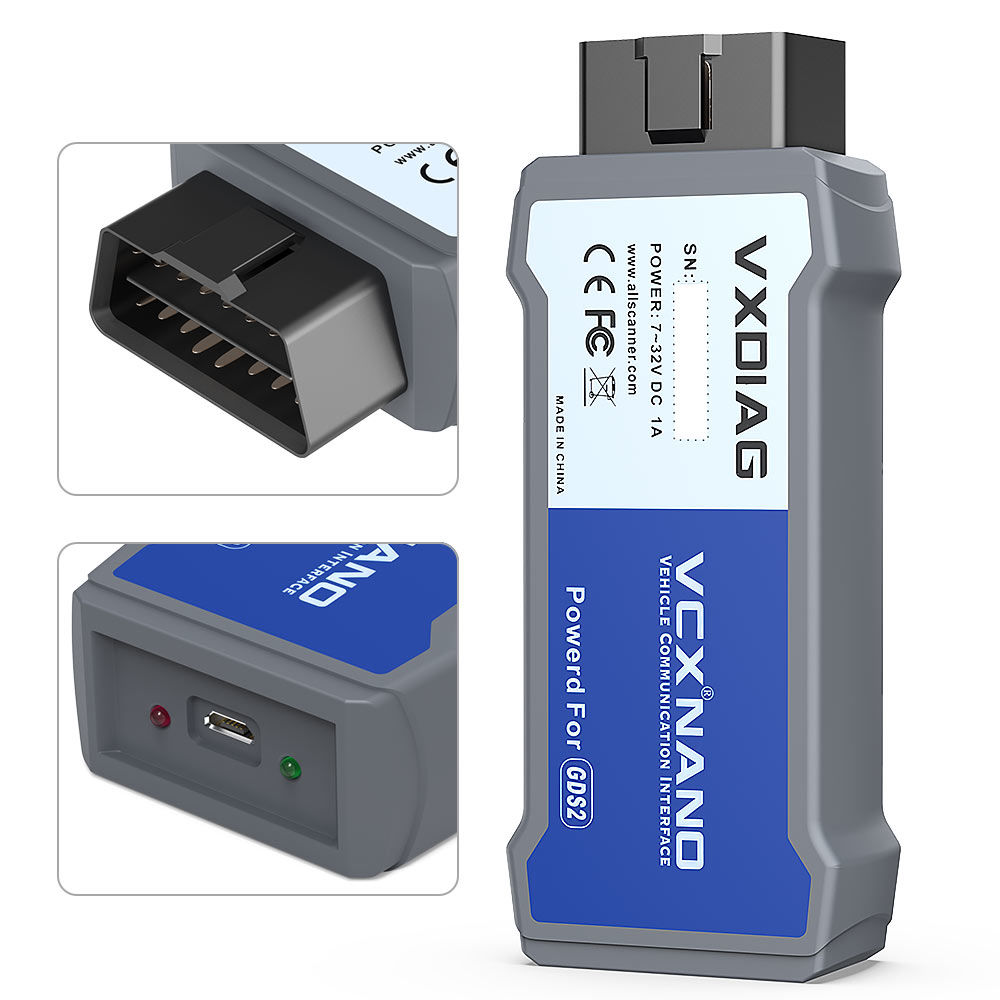

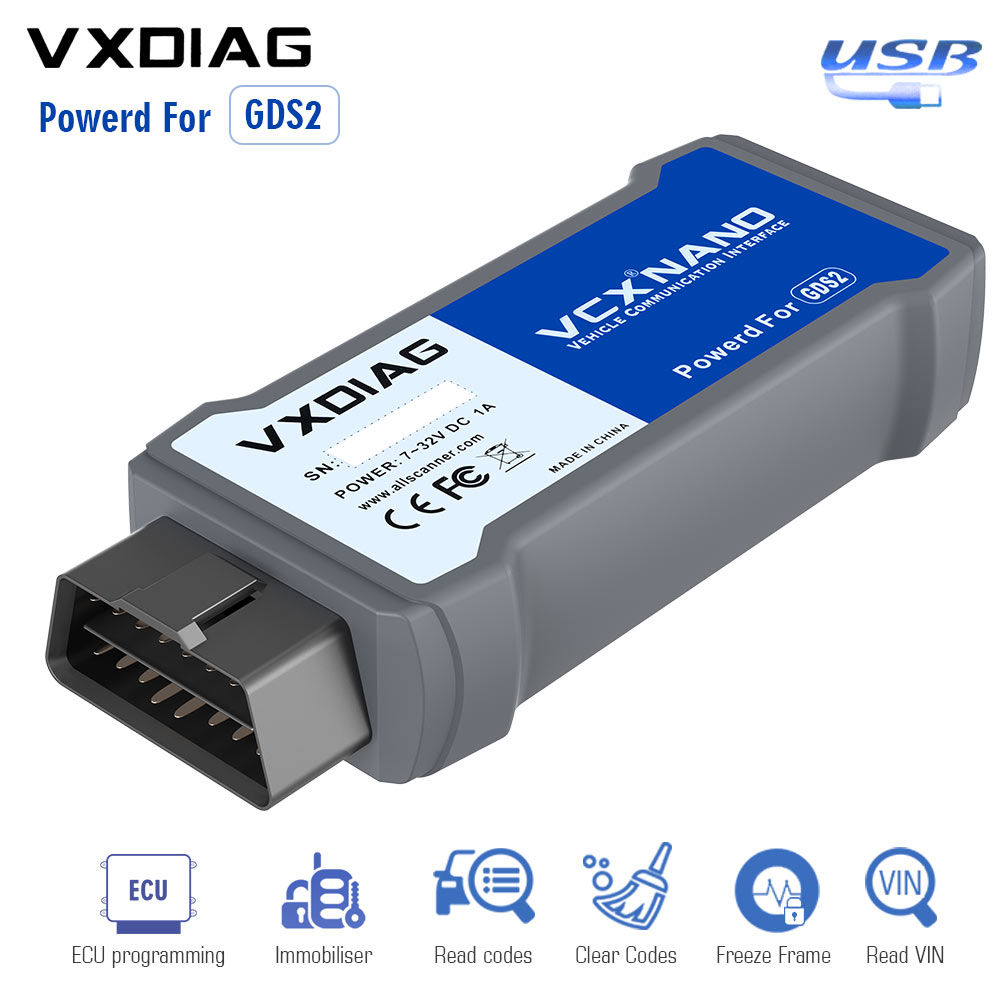

VXDIAG VCX NANO GM / OPEL GDS2 /Tech2WIN

Precio Contado
$32.000
Medios de pago

Depósito o transferencia bancaria

  • Visa
  • Mastercard
  • American Express
Envíos y entregas
Entrega en nuestras oficinas CABA - Buenos Aires.
Encomiendas por transporte designado por el comprador o correo.
Cambio, Devoluciones y Garantía
  • El producto tiene cambio o devolución dentro de las 72hs de recibido en idénticas condiciones como fue entregado.

Descripción del producto

VERSION ACTUALIZADA


GDS2 V2021

Tech2Win 16.02.24



VCX NANO GM Scanner Language:

GM GDS2 Languages: English, Spanish, French, Italian, Portuguese, Netherlands, Russian, Arabic, Japanese, Chinese, Vietnamese
GM Tech2win language: English


Top 8 Reasons to Get VXDiag GM:


1. Supports GM Tech2Win and GDS2, can replace GM original tool MDI/ Tech2.

2. Compatible with applications that diagnose engines, transmissions, ABS, instrument panels and more

3. Mixed fleet capabilities with broad protocol support

4. Quick access to vehicle data for maintenance or management reports

5. Quickly attaches to vehicle's diagnostic connector

6. Supports GM vehicle from year 2000 to 2020
7. Supports GM online programming (ECU Programming, ECU performance upgrade) with an online account
8. The software is updated by link while the firmware/license is updated online.

VXDiag VCX NANO for GM / OPEL FEATURES:

* Fully compatible with SAE-J2534-1 & SAE-J2534-2
* All current and most legacy vehicle protocols: CAN, UART, KW2000, Class2, GM LAN, etc.
* USB vehicle-to-PC connectivity
* CE and FCC compliance for hardware
* Supports Windows 7 32bit
* Firmware and License Updatable


Global Diagnostic System (GDS and GDS2) V22.2.03302 / 2021.4 with 2021 database


It is PC-to-vehicle interface compatible with multiple software applications, minimizing your investment in multiple brand-specific diagnostic interfaces.

* New Diagnostic Application Software required for all GM Global Architecture (Global A) Vehicles.

* GDS & GDS2  (Global Diagnostic System) is software which runs on a specific PC. Updates received via TIS2Web.

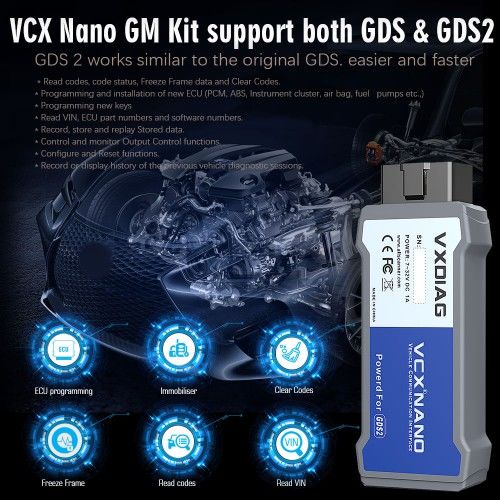

VCX Nano GM Scan Tool support both GDS and GDS2. GDS 2 works similar to the original GDS. easier and faster


GDS 2 provides the following capabilities in multiple languages:



* Read codes, code status, Freeze Frame data and Clear Codes.

* Read VIN, ECU part numbers and software numbers.

* Record, store and replay Stored data.

* Control and monitor Output Control functions.

* Configure and Reset functions.

* Record or display history of the previous vehicle diagnostic sessions.

COMPATIBLE SOFTWARE:

* Support PC-based diagnostics with rollout of the Global Diagnostic System GDS & GDS2
* Support GM TIS2WEB online Service Programming System (SPS)
* Support Tech2Win application to offering a larger screen with all of the Tech 2 tool functionality


Service Programming System (SPS/SPS2) (Requires GM online account for SPS programming)



* passthrough programming on GM past model and Global A vehicles

* Increase reprogramming speed 20-70% and get ready to service new models



For pass-through programming of electronic control units on all vehicles built since 1996 and future model releases. The VCX Nano Prime GM KIT is between 20% and 70% faster than Tech 2.For example, on a new Tahoe hybrid with 7 ECUS, it would normally take 2 full hours to reprogram. But, with VCX Nano the process is completed in just 45 minutes. That’s a 64% difference and means you could service 10vehicles rather than 4in an 8-hour day! The potential to increase revenues is dramatic.



Tech2Win Function



Tech2Win, an application version of the Tech 2 and CANdi (Control Area Network diagnostic interface) moduleTech2Win can be used during a vehicle road test, offering a larger screen with all of the Tech 2 tool functionality. The Tech2Win application offers all of the features and functions of the Tech 2 for Opel etc.


New Vehicles Model list



VCX Nano Prime GM KIT is the only full-spectrum diagnostic and reprogramming tool capable of servicing new Delta and Epsilon vehicles (with auxiliary CAN bus that cannot be serviced by Tech2).Below  is the list of vehicles being delivered this year that will rely exclusively on this tool for service.

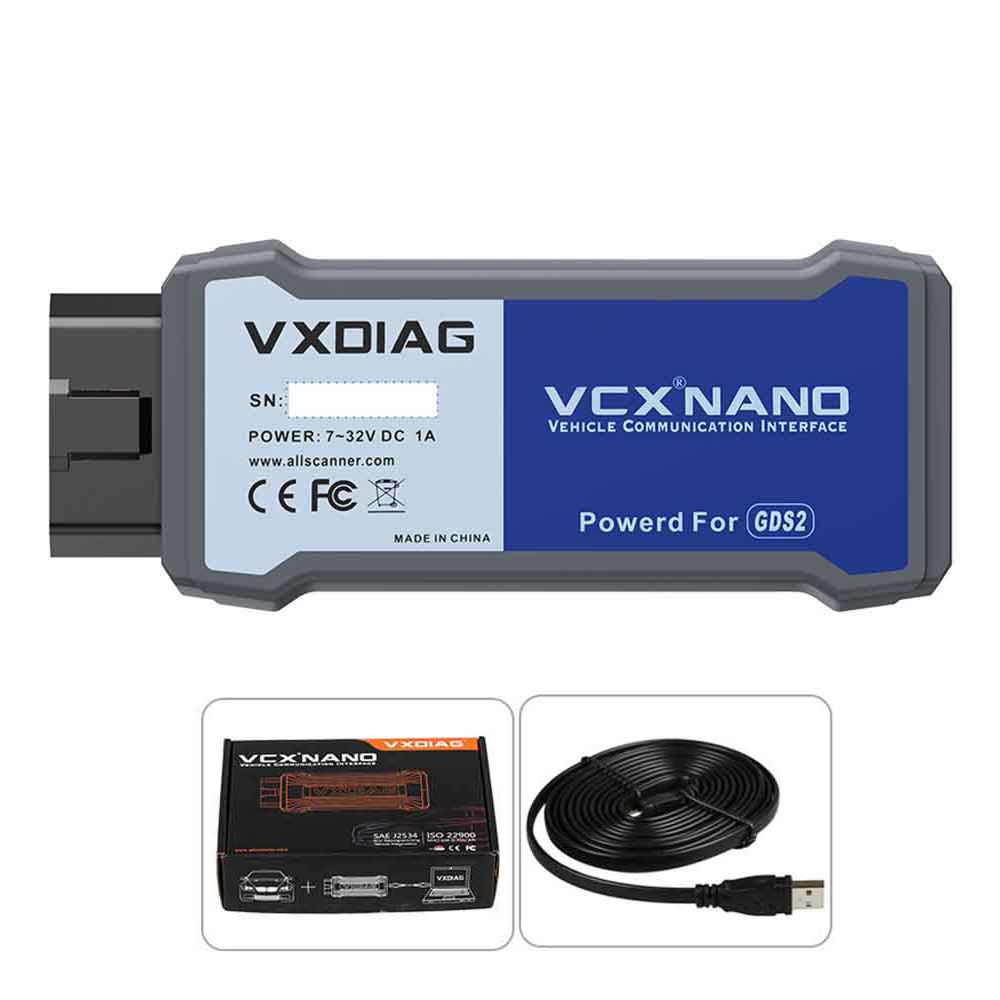

Packing list:



1pc x VXDiag VCX NANO for GM

1pc x USB cable

1pc x VX Manager Diver CD
