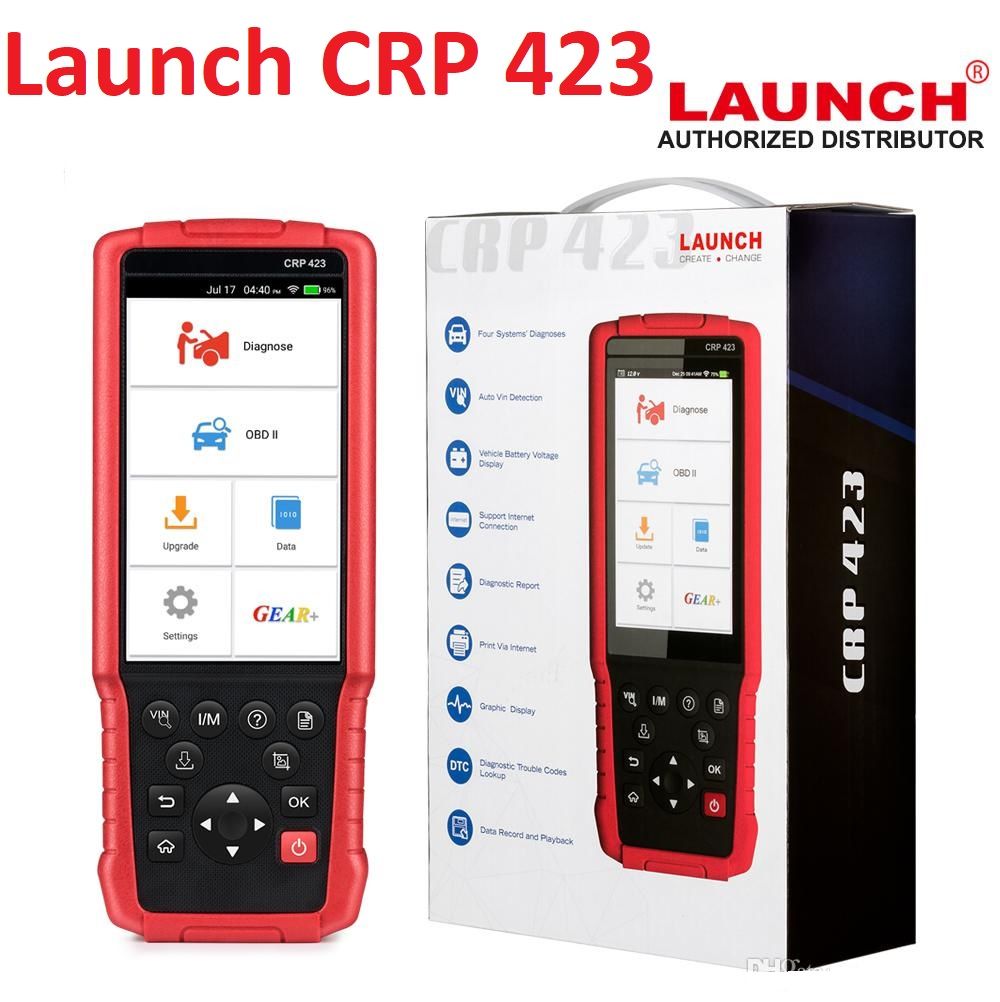

Launch CRP 423

Descripción del producto

LAUNCH X431 CRP423 OBD2 Code Reader Scanner support Engine/ABS/Airbag/AT

Top Recommand :

1. Launch CRP423 does not register , can work directly when you get it .

2. Launch CRP423 updates via WIFI .

3. Launch CRP423 works with Android and with Touch screen , more easy to operate .

4. Launch CRP423 can One-Click I/M , One-Click Auto VIN Detection , One-Click diagnostic report , One-Click Update and One-Click Screenshot .

5. Launch CRP423 language : English, French, Spanish, Russian, Japanese, German, Italian, Portuguese.

6. Launch CRP423 supports more than 4 system ( Engine,ABS,Airbag,AT etc ) .

Note :

1. Launch CRP423 is with Android system , but it can not install other languages in .

2. The USB cable in the package is only for charger , not for transmission , it need share the diagnostic report to your email box , then print .

3. Launch CRP423 supports more than 4 system , it is for some cars , not for all cars .

Introduction:

CRP423 is in evolutionary smart solution for passenger car diagnosis. it inherits from LAUNCH's advanced diagnosing technology and is characterized by covering a wide range of vehicles. featuring powerful functions. and providing precise test result CRP 423 supports all 10 models of OBDlI test for a complete diagnosis. CRP 423 also supports the system diagnosis of ABS, Airbag , Engine and Transmission system.

Multi-Language:  English/ French/ Spanish/ German/ Russian/ Japanese/ Portuguese/Italian

Functions and Features:

Smart(Auto Detect Diagnosis): Once CRP 423 and the vehicle are properly connected, the system starts auto-detect process. Once the whole process is successfully finished, a diagnostic report will be automatically generated and sent to your email box (if bound).

Manual Diagnosis: If Auto-Detect failure occurs, manual diagnosis is also available. Diagnosis functions include: Version Information, Read DTCs.Clear DTCs and Read Data Stream (supports 3 display modes: Value, Graph and Merged)

OBDII/EOBD Diagnosis: 10 modes of OBD II test are supported, including EVAP. O2 Sensor, lM Readiness. MIL Status, VIN Info, and On-board monitors testing etc.

Remote Diagnosis (optional): This option aims to help repair shops or technicians launch instant messaging and remote diagnosis, making there pair job getting fixed faster.

One-click Update: Let you update your diagnostic software and APK online.Diagnostic History This function provides a quick access to the tested vehicles and users can choose to view the test report or resume from the last operation, without the necessity of starting from scratch.

Diagnostic Feedback:Use this option to submit the vehicle issue to us for analysis and trouble shooting

DTC Library: Allows you to retrieve the definition of the diagnostic trouble code from the abundant DTC database.

Displays battery real-time voltage once property connected to the vehicle

Features screenshot capture. Screen shots and reports sharing are supported

Touch & Keypad input are supported. Quick Dial buttons enables your to easily access the corresponding functions.

Technical Parameters:

Screen : 5-inch 720P IPS Touch Screen

RMA:1GB

ROM:8GB

Battery: 4000mAh rechargeable Li-battery

OBDII input voltage range: 9-18V

Workingtemperature:-10Cto 50C(14 to 122 F)

Storagel temperature:-20Cto 70C(-4 to 158 F)

Product Size: 248.7x93.5x36(mm)

Product Net Weight: 530g

Packing list:

1. CRP 423 handset

2. OBD II diagnostic cable

3. DC 5V charging cable

4. User manual

5. Padded carrying case
